Heating service stations with infrared heaters: a real project in Ivano-Frankivsk

Heating a car service station has its own specific requirements. Vehicles are constantly entering and leaving, gates and doors are frequently opened, and regular ventilation is often necessary during work. Under these conditions, traditional heating systems that primarily heat the air may operate less efficiently: heated air quickly escapes outside, taking part of the thermal energy with it.

One solution for such premises is infrared heating for car service stations. Infrared heaters transfer heat directly to surfaces and objects within the radiation zone, allowing a comfortable temperature to be maintained without constantly heating the entire volume of air.

How to Heat a Car Service Station with a High Ceiling?

For an automotive workshop, it is important not only to select sufficiently powerful equipment but also to calculate the required number of heaters and their optimal placement. This is particularly important for premises with high ceilings.

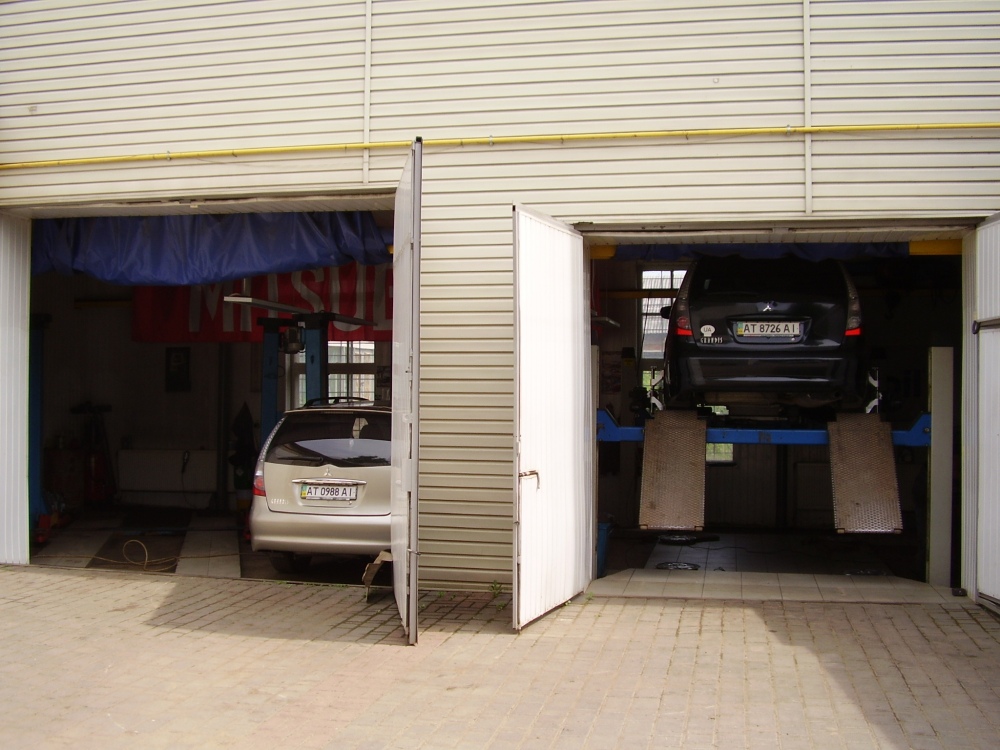

As part of a project in Ivano-Frankivsk, Teplov was tasked with providing heating for a car service station with an area of 70 m² and a ceiling height of 4 meters. The project was completed in 2014.

Five Teplov P2000 ceiling-mounted infrared panels were installed to heat the working area. The total installed capacity of the system was 10 kW. The heaters were positioned at the appropriate height, taking into account the characteristics of the premises and the working areas.

Project Specifications

Why Are Infrared Heaters Used in Car Service Stations?

An automotive workshop is a space where the air temperature can fluctuate due to frequently opened gates and the need for ventilation. Therefore, when designing a heating system, it is important to consider not only the floor area but also the ceiling height, insulation, location of gates, and workstations.

Ceiling-mounted infrared heaters do not occupy valuable floor or wall space. This is particularly convenient for car service stations, where every square meter is needed for vehicles, equipment, and tools.

Heat can be directed specifically toward the working area — where employees are located and repair work is carried out. At the same time, the heaters do not interfere with vehicle movement or create additional obstacles within the premises.

You can explore the available range in the Teplov ceiling-mounted infrared heaters section.

Electric Heating for a Car Service Station Without Complex Infrastructure

Another advantage of electric infrared heating systems is that there is no need to install an extensive network of pipes or radiators throughout the premises. The equipment is installed in the upper part of the room, while temperature control can be organized using a thermostat control system.

At the same time, it is important to understand that the required heating capacity and number of heaters must be determined individually for each car service station. The floor area alone is not sufficient to select the equipment. Ceiling height, heat losses, gate dimensions and construction, insulation, ventilation, and operating conditions should also be taken into account.

For this reason, it is recommended to carry out a heat-loss calculation before installation and determine the optimal equipment layout.

Heating an Automotive Workshop: A Practical Solution for the Working Area

The project implemented in Ivano-Frankivsk demonstrates how infrared heating for a car service station can be organized in a 70 m² premises with a high ceiling. Five Teplov P2000 ceiling panels with a total capacity of 10 kW provided heat distribution throughout the working area of the service station.

If you are looking for a way to heat a car service station, automotive workshop, or another premises with a high ceiling, the heating system should be evaluated not only in terms of capacity but also with regard to the operating conditions of the facility.

More examples of infrared heating applications can be found in the Teplov portfolio of completed projects. Current solutions for industrial and commercial premises are presented in the industrial heating section.

Frequently Asked Questions

Are infrared heaters suitable for car service stations?
Yes. Infrared heating can be used in automotive workshops and car service stations, including premises with high ceilings and frequently opened gates.

How do you choose heaters for a car service station?
The floor area, ceiling height, thermal insulation, gate design, ventilation, and operating conditions should all be considered. The optimal number and capacity of heaters should preferably be determined based on a heat-loss calculation.

Why are ceiling-mounted heaters used for car service stations?
They do not occupy valuable working space and allow heat sources to be positioned above the working area without obstructing vehicles or equipment.

Can infrared heating be used as the primary heating system?
The suitability of infrared heating as the primary heating system depends on the specific characteristics of the premises and the results of the heat-loss calculation
