Production Facility Heating with Infrared Heaters
The task — heating a production facility
In September 2014, Teplov specialists implemented a heating project at a production facility in Kharkiv, Ukraine. The premises did not have a heating system, so the equipment and heating layout had to be designed from scratch.
The main objective was to organize heating for the production facility while taking the characteristics of the premises into account and providing targeted heating of the working area.
Teplov specialists calculated the required thermal power and developed the infrared heater layout for the facility.
The solution — infrared heating for production

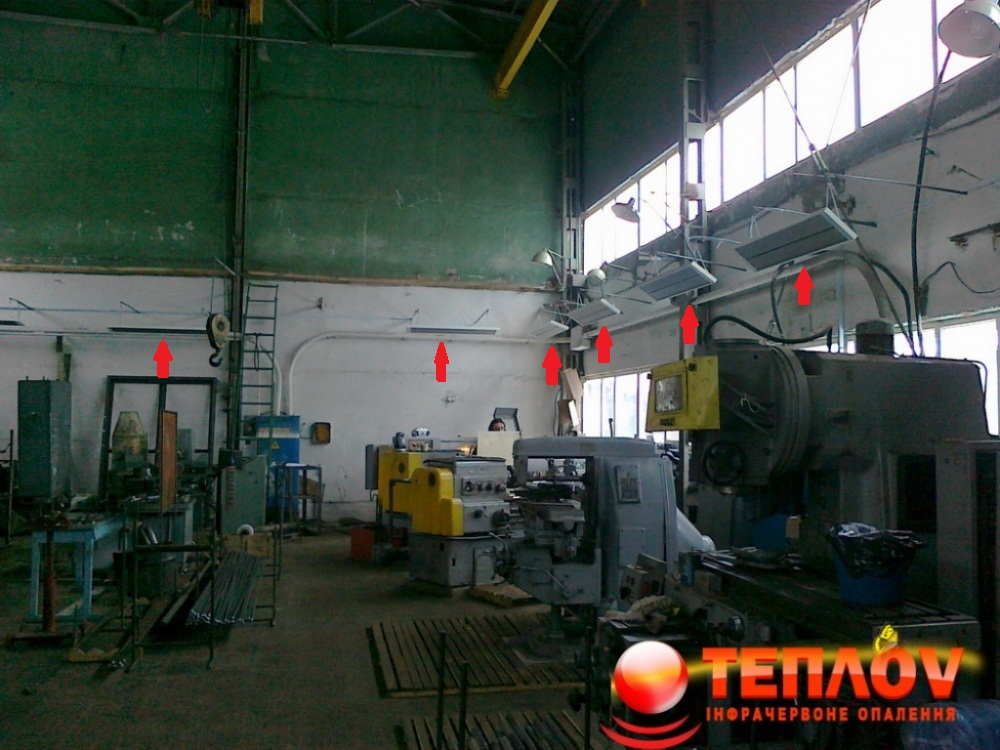

The production facility in Kharkiv was equipped with 20 Teplov P2000 infrared heaters. The total installed power was 40 kW.

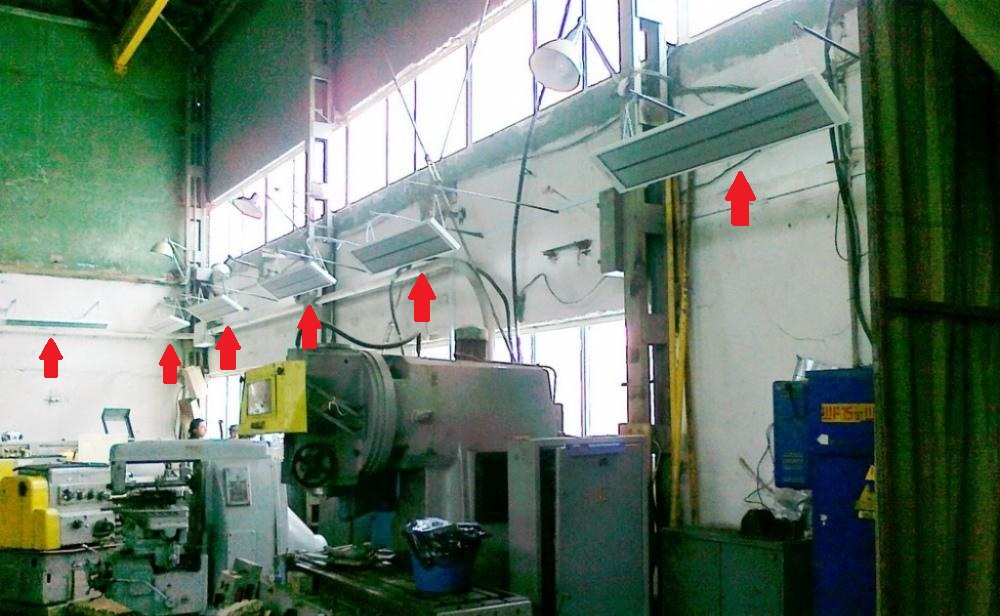

The heaters were positioned at an angle so that infrared radiation was directed toward the working area.
Part of the equipment was also installed below the windows on special brackets. This arrangement helped reduce heat loss outside the heated zone.
Main project characteristics
|
Parameter |
Specification |
|
Facility |
Production premises |
|
Location |
Kharkiv, Ukraine |
|
Floor area |
283 m² |
|
Wall height |
8 m |
|
Project date |
September 2014 |
|
Task |
Heating system installation from scratch |
|
Equipment |
Teplov P2000 infrared heaters |
|
Quantity |
20 units |
|
Power per heater |
2000 W |
|
Total installed power |
40 kW |
|
Installation |
Angled toward the working area; part of the equipment below the windows |
|
Heating principle |
Targeted infrared heating of working zones |
Teplov's calculations determined that a total thermal power of 40 kW was sufficient for heating the production premises.
How the production facility heating system was organized
The heating system in this project was installed directly at the production facility in Kharkiv. The main feature of the project was that the building had no existing heating system, so the equipment and its layout had to be designed from scratch.

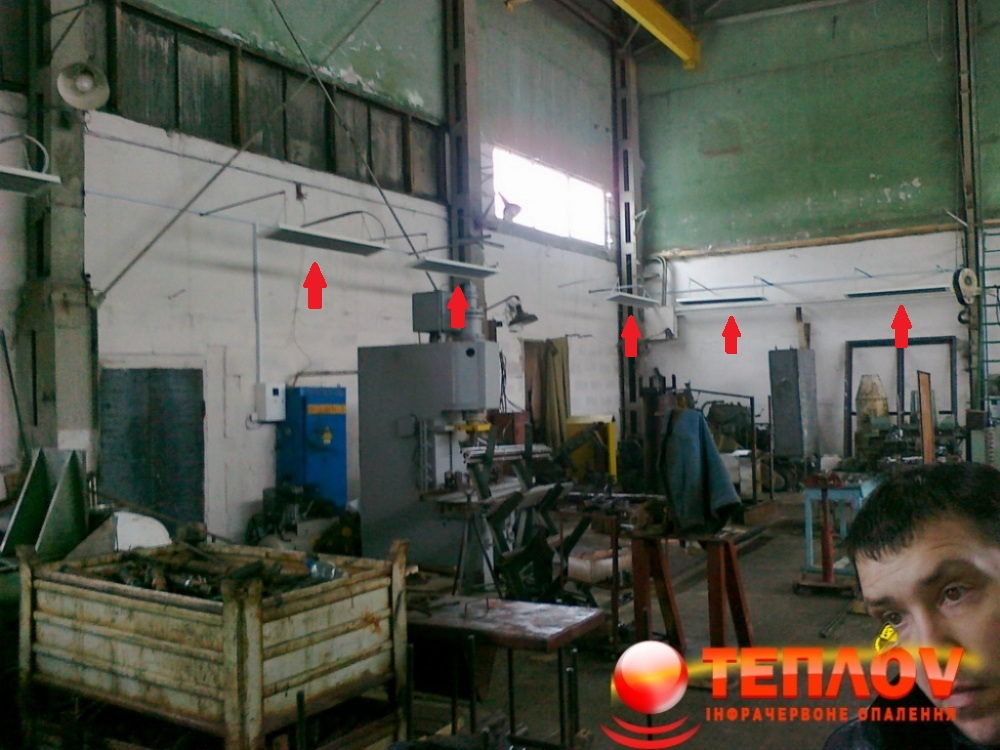

The P2000 infrared heaters were positioned according to the location of the working area. They were installed at an angle so that thermal radiation was directed toward the areas requiring heating.
Particular attention was paid to the areas below the windows. The heaters installed there were mounted on brackets, allowing the system to account for cold zones and reduce heat loss outside the premises.
Industrial heating for workshops and production premises
The experience gained from this project in Kharkiv is applicable to heating systems for different industrial facilities.
Infrared heating can be used for workshops, production premises, warehouses, hangars, service stations and other industrial facilities.
Each facility requires an individual heating layout. Building characteristics, room height, workplace and equipment location, windows, gates and potential heat-loss areas are taken into account during the design process.
Ceiling infrared heaters
Teplov offers infrared heaters with different power ratings for industrial facilities.
Ceiling installation allows the equipment to remain outside the working area and keeps valuable floor space available for production activities.
