Heating a furniture showroom with high ceilings

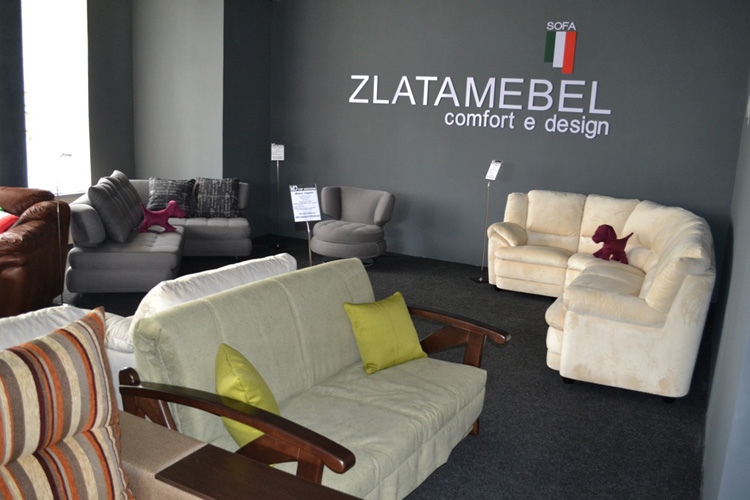

How do you heat a furniture showroom with large glazed shopfronts and a 6-metre ceiling? This was the task at a site in Rivne. Extensive glazing and high heat losses meant that equipment capacity, heat distribution and practical heater placement were all important considerations.
Five Teplov P3000 infrared heaters with a total rated capacity of 15 kW were installed to heat the showroom. The heaters were mounted 5 metres above the floor, with temperature control provided by a thermostat.
Equipment and project specifications
| Parameter | Project details |
|---|---|
| Premises | Furniture showroom in Rivne |
| Building characteristics | Extensive glazing and high heat losses |
| Ceiling height | 6 m |
| Heaters | 5 × Teplov P3000 |
| Total installed capacity | 15 kW |
| Mounting height | 5 m above the floor |
| Controls | Thermostat 1.5 m above the floor |
Why infrared heating was selected for the high-ceilinged showroom
In a room with a high ceiling, heat needs to reach the occupied zone. When a system primarily heats the air and air mixing is insufficient, warm air rises and accumulates near the ceiling. Reaching the required temperature at customer and staff level can therefore involve additional heating of the upper part of the room, potentially increasing heat losses and costs.
Infrared heaters transfer part of their heat directly to people, the floor and surfaces within their radiation coverage. The warmed surfaces then release heat to the surrounding air. This allows the occupied zone to be heated without first having to equalise the temperature throughout the entire six-metre-high space.
This combination is useful in a furniture showroom: ceiling mounting preserves display space, while the radiant component delivers heat directly to the area being served. Heat losses through the large glazed shopfronts still need to be accounted for when selecting capacity — the heating method does not eliminate the building’s heat demand.

Positioning heaters above the furniture displays
Ceiling-mounted infrared heaters take up no floor space. The showroom floor remains available for sofas, tables, wardrobes and aisles.
At this site, five Teplov P3000 heaters were mounted at 5 metres in a room with a 6-metre ceiling. This provided a way to install heating while keeping space available for furniture displays and customer movement.
A similar example of equipment used in a high-ceilinged room is the cultural centre auditorium heating project. It also uses a 5-metre mounting height beneath a 6-metre ceiling. Heater quantities and operating settings were selected for the purpose and conditions of that particular building.
Temperature control and electricity consumption
The showroom thermostat is installed 1.5 metres above the floor. It monitors temperature in the occupied zone: heating switches off when the setpoint is reached at the sensor and resumes when the temperature falls. The heaters do not need to run continuously at full output.
According to operating data, average electricity consumption with thermostat control is 30–40% of consumption during continuous operation at rated power. For five P3000 heaters with a total capacity of 15 kW, this corresponds to an average of 4.5–6 kWh per hour of system operation, allowing for periods when heating is switched off. Actual consumption varies with the weather, temperature setting and building heat losses.
Further savings can be achieved through a night setback. Outside opening hours, the temperature setting can be lowered by 5–7 °C and restored to the working setting before the showroom opens. Reducing the indoor-to-outdoor temperature difference lowers heat losses while customers and staff are absent. Programmable controls can make these changes automatically to a schedule.
Selecting heating for a furniture showroom
This Teplov project combined overhead installation, heating for a high-ceilinged retail space and temperature control at occupant level. Five P3000 heaters were positioned above the displays, preserving usable floor space for retail activity.
To select equipment for a similar site, we need the floor area and ceiling height, glazing dimensions and specifications, insulation details, opening hours and available electrical capacity. These inputs allow us to determine the equipment required and calculate its cost.
Other applications are presented in our section on heating retail and commercial premises.
Request equipment selection and a furniture showroom heating quote
Furniture showroom heating questions
Is infrared heating suitable for premises with large glazed shopfronts?
Yes. This furniture showroom has extensive glazing and a 6-metre ceiling, and uses five Teplov P3000 heaters. At another site, capacity and heater quantities should be selected to account for heat losses through glazing, walls, the roof and ventilation.
Do the heaters run continuously at full power?
With thermostat control, heating switches off once the temperature setting is reached. According to operating data, average consumption is 30–40% of consumption during continuous operation at rated power. The length of the on periods depends on operating conditions.
Can heating costs be reduced outside opening hours?
Yes. A night setback lowers the temperature setting by 5–7 °C. Before the premises open, the setting is restored in advance to the working temperature. A programmable thermostat can manage these changes automatically.
